生產廠家：J|上海精宏

控溫范圍 ：5~65℃

開口尺寸/槽深 ：300*250*200mm

詢價：加入詢價車

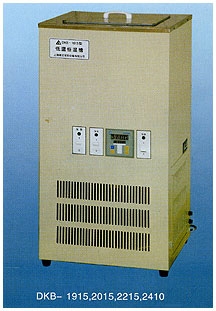

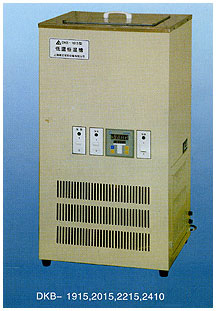

DKB型 低溫恒溫槽 DKB Series Low Temperature Water Bath
一、 用途概述：
供大專院校、工礦企業和科研單位精密恒溫和輔助加熱或制冷之用。
二、 產品特點：
1、 采用不銹鋼內膽、頂蓋。
2、 配有內循環水泵，設有外循環接口，客戶可改變循環接口外輸出恒溫源。
3、 微電腦智能控溫儀，具有設定、測定溫度雙數字。顯示和PID自整定功能，控溫精確、可靠。
4、 模塊式制冷裝置，配置延時啟動，高、低壓力多重保護。
I .Applications :
It is applicable to exact constant temperature and calefaction or refrigeration on the college, industry mine and scientific research institute.
II .Features :
1、 The working chamber and the lid are made of stainless steel.
2、 The product that has the inner circle water pump., after install the outer circle,it can be output the constant temperature water.
3、 Intelligent temperature controller is based micrtprocessor with PID parameters controlling function. Digital display of set and actual temperatures High temperature controlling accuracy and reliability.
4、 Module-designed retrigeration system is equipped with function of delayed-start and high/low pressure protection.


三、 技術參數。(Specifications): 型號Model
DKB-1906
DKB-2006
DKB-2206
DKB-1915
DKB-2015
DKB-2215
DKB-2310
DKB-2410
電源電壓Mains voltage
220V.50Hz

控溫范圍Temperature control range
5~99 ℃ -10~99 ℃ -20~99℃
1~99℃
-10~99 ℃
-20~99 ℃
-30~40 ℃
-40~40 ℃
溫度波動Temperature fluctuation
±0.1℃

水泵流量Water pump flux
4L/min
10L/min

水泵揚程Water pump lifts
0.8m
1.5m

消耗功率Consumption Power
900W
1590W
1590W
1650W
1100W

工作室尺寸Dimensions of the working chamber
210 × 160 × 180mm
300 × 250 × 200mm
250×200×180mm
